Liquid Gas Cylinder Rack (2 x 33" Tank)

Liquid Gas Cylinder Rack (2 x 33" Tank)

SKU: R2X1C33

Regular price
$1,125.00
Sale price
$1,125.00
Regular price
Sold out
Unit price
per
Optional: Anchor Bolt Set of 6 + $16.00

(Cryogenic/Dewar Tanks)

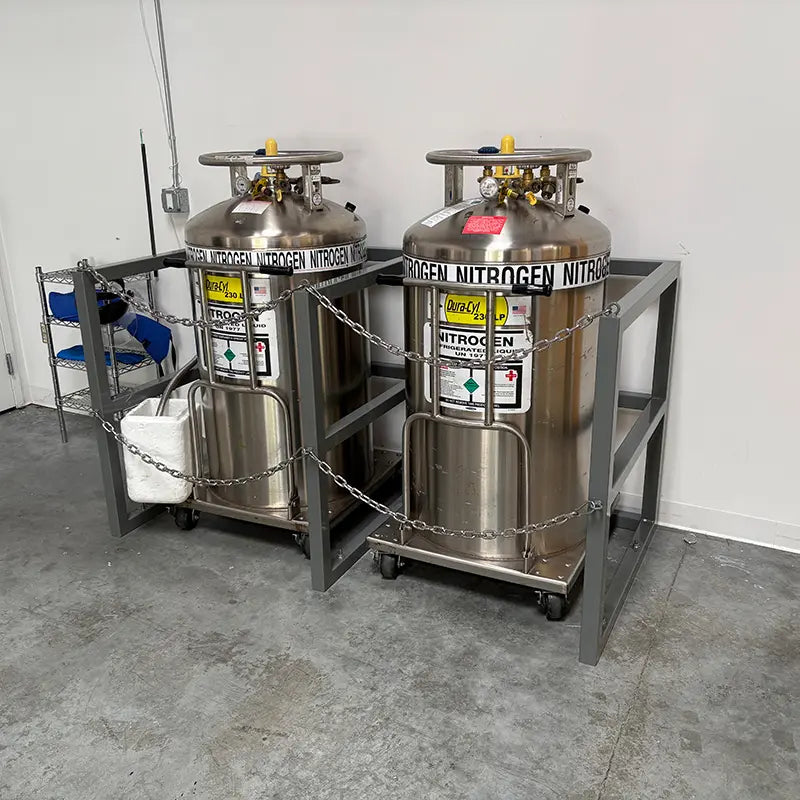

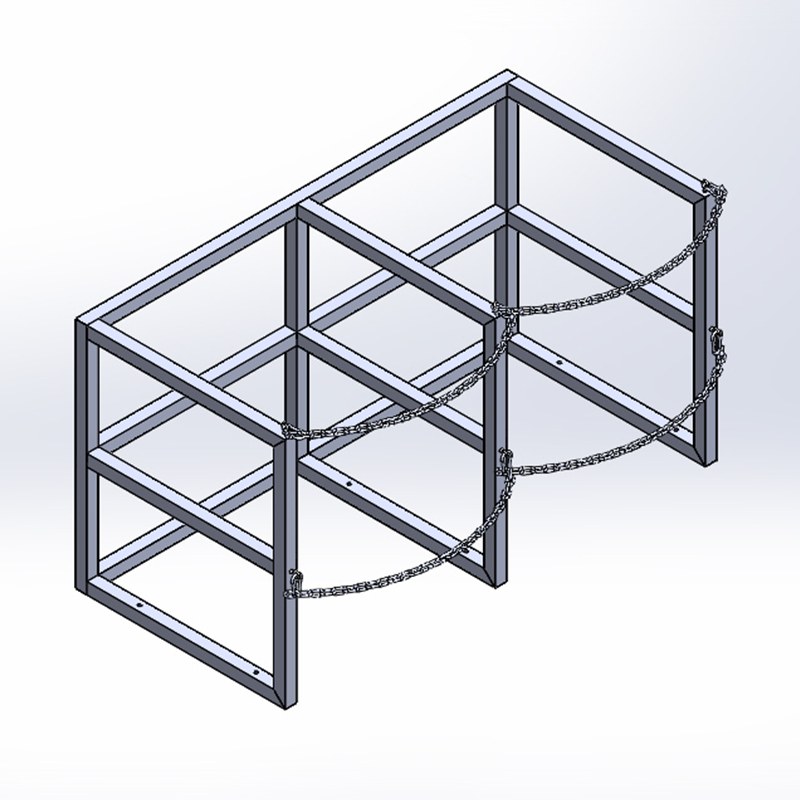

Liquid Gas cylinder rack is fabricated out of tube steel 2” x 2”. It can accommodate cylinders 18” to 33” dia. and can hold 2 cylinders. The cylinders are encased with seam welded tube steel and secured at front using 2 levels of chains and snaps. Holes are provided at bottom leg for permanently anchoring to floor (Please order anchor bolts separately). Helps comply with OSHANFPA 1NFPA 55, and CGA when professionally installed and secured.

Color:
Gray color readily available in stock, other custom colors offered, please call to check availability.

Lead time:
Product is made-to-order and ships 10 - 20 business days from order date.



    • Cylinder capacity: 2
    • Cylinder diameters supported: 18" - 33"
    • 2" square steel tube continuously seam welded
    • Powder coated finish
    • Two levels of welded steel chains with snaps
    • 6 Pre-drilled 0.531" diameter floor mounting holes
    • Meets USGS high seismic hazard zone requirements when installed properly
    • OSHA, OSHANFPA 1NFPA 55, and CGA compliant when used properly
    • Dimensions: 74" wide x 36" deep x 40" high
    • Product Weight: 186 lbs.
    • Made in the USA

    Pick a location free from vehicle traffic, excessive heat and electrical circuits. It should be a dry and well-ventilated area.

    Secure rack to the ground/floor using the appropriate hardware for the material. Typical size bolt is 1/2" by 5 1/2" size. Anchor bolts are not included. Each rack has pre-drilled 0.531" holes in each arm for mounting to ground.

    It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the barricade racks at that location and to confirm all local regulations are being followed

    Didn’t quite find what you were looking for? You need a different color or different dimension?

    We’re here to help. Please call us at 909-552-3100 or send us an e-mail to sales@karanandassociates.com.
