Gas Cylinder Wall Mount Bracket (1x) - Large Bottle

Gas Cylinder Wall Mount Bracket (1x) - Large Bottle

SKU: WB1L

Regular price
$70.00
Sale price
$70.00
Regular price
Sold out
Unit price
per
Optional: Chain Set + $10.00

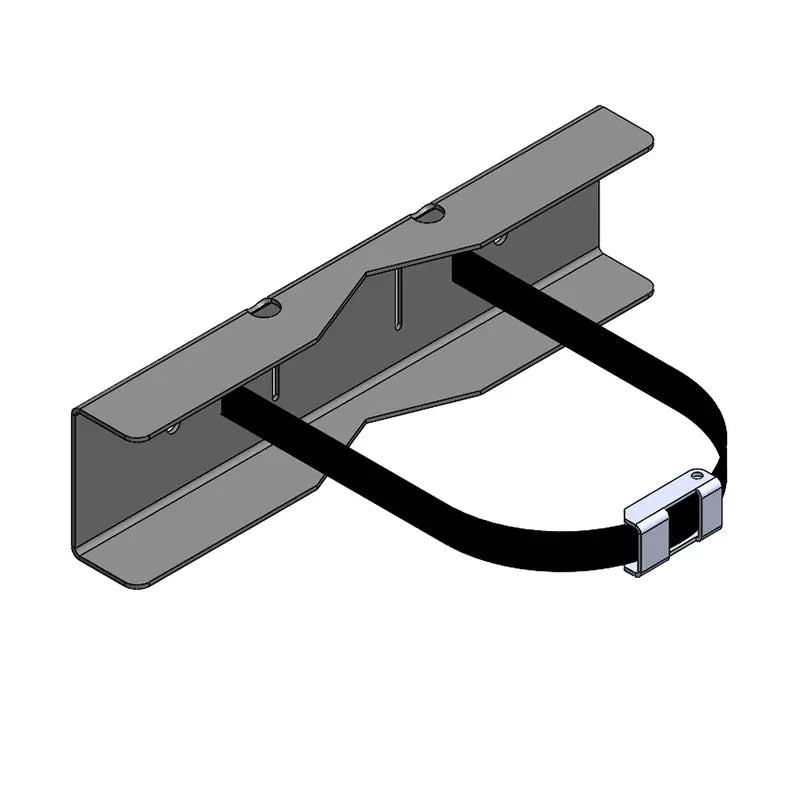

The gas cylinder wall mount bracket is fabricated out of 11ga thick hot rolled steel. It accommodates cylinder from 4” to 12” dia. and can hold 1 cylinder. The cylinders is secured in place using the 1 ½” wide polypropylene straps with cinch buckle. The steel reinforced vinyl grip provides edge protection and better grip for the cylinders. The brackets are powder coated for chemical resistance and rust protection. The cylinder brackets are durable, long lasting, light weight and easy to handle.

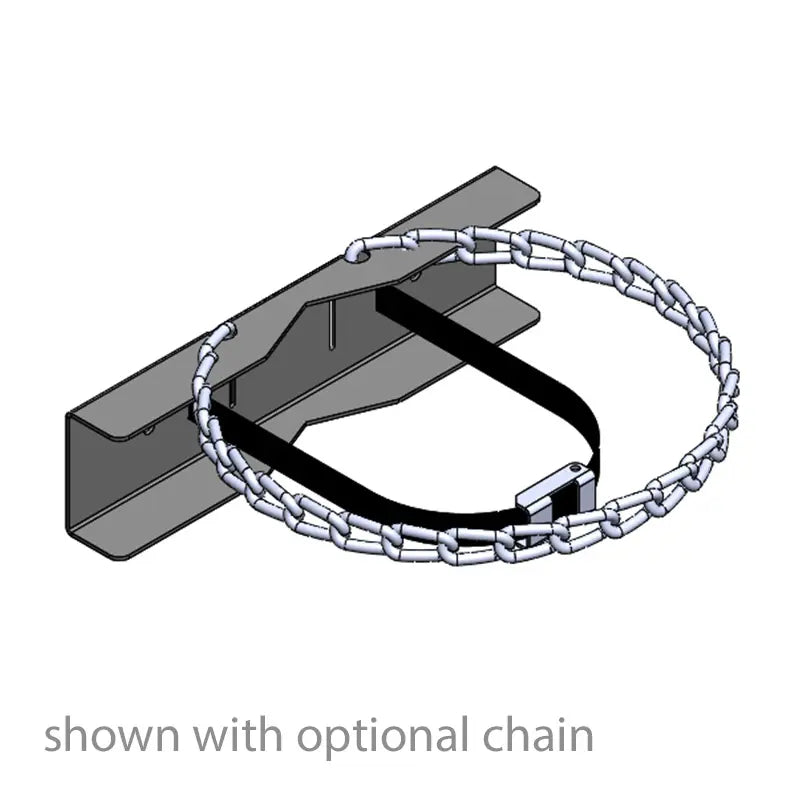

Optional chain sets can be added for additional support.

Color:
Gray color readily available in stock, other custom colors offered, please call to check availability.

Lead time:
Product is made-to-order and ships 1 - 3 business days from order date.



    • Cylinder capacity: 1
    • Cylinder diameters supported: 4" - 12"
    • Built from 11 gauge hot rolled steel
    • Powder coated finish
    • Edges protected with steel reinforced vinyl edge guarding
    • 1.5" Polypropylene straps and cinch buckle included
    • Chain sets (optional) can be added for additional support
    • Meets USGS high seismic hazard zone requirements when installed properly
    • OSHANFPA 1NFPA 55, and CGA compliant when used properly
    • Dimensions: 18" wide x 2.45" deep x 4.25" high
    • Product Weight: 7 lbs.
    • Made in the USA

    Pick a location free from vehicle traffic, excessive heat and electrical circuits. It should be a dry and well-ventilated area.

    Use 5/16" (9mm) hardware. Select the appropriate fastener type based on the wall construction. For concrete and concrete block use at least 2.5" long concrete anchor bolts. For wood walls use wood screws and flat washer. If mounting to drywall use appropriate size anchors. Locate the straps and buckles before installation, the bracket will press the strap against the wall to help prevent someone from unthreading the strap from the bracket. Use 2 fasteners to attach bracket to the wall.
