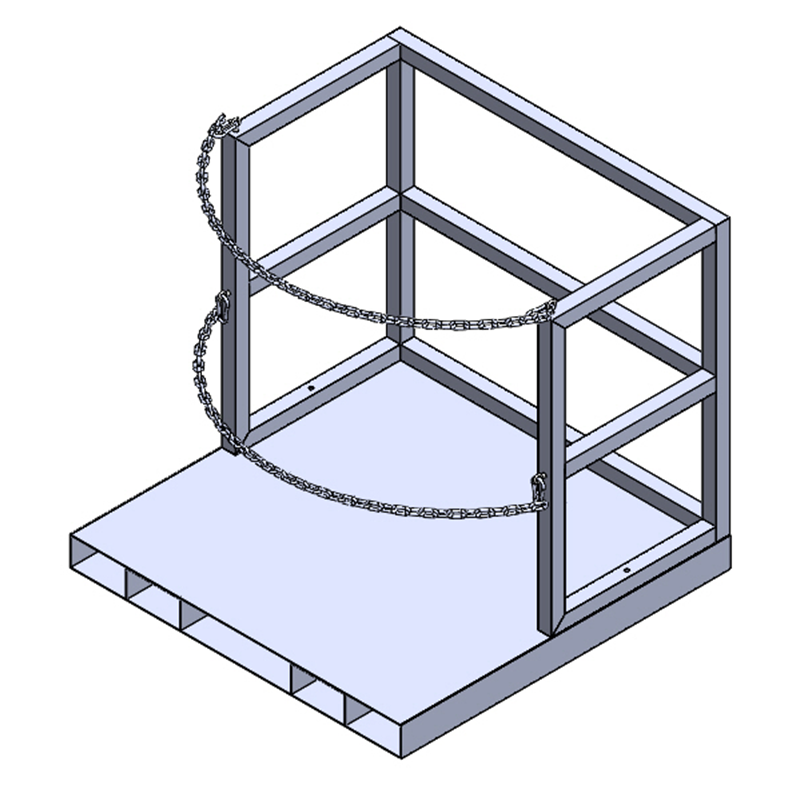

Gas cylinder pallet rack is fabricated out of tube steel 2” x 2”and 11ga thick plate. It can accommodate cylinders up to 33” dia. The cylinders are secured using polypropylene straps and additional chains can be added if required. The pallet is 4-1/4” high from the ground and has slots to accommodate standard forks (4-1/4” x 7-3/4”) from front and back. Helps comply with OSHA, NFPA 1, NFPA 55, and CGA.
Color:
Gray color readily available in stock, other custom colors offered, please call to check availability.
Lead time:
Product is made-to-order and ships 3-4 weeks from order date.
- Cylinder capacity: 21 x 9" diameter or 4 x 22" diameter
- Cylinder diameters supported: 6” - 33"
- Steel construction
- Powder coated finish
- Polypropylene straps and cinch buckle for each cylinder included
- Platform height is 4-1/4” from ground
- Chain sets (optional) can be added for additional support
- Meets USGS high seismic hazard zone requirements when installed properly
- OSHA, NFPA 1, NFPA 55, and CGA compliant when used properly
- Overall dimensions: 48" wide x 48" deep x 33" high
- Product Weight: 272 lbs.
- Made in the USA
