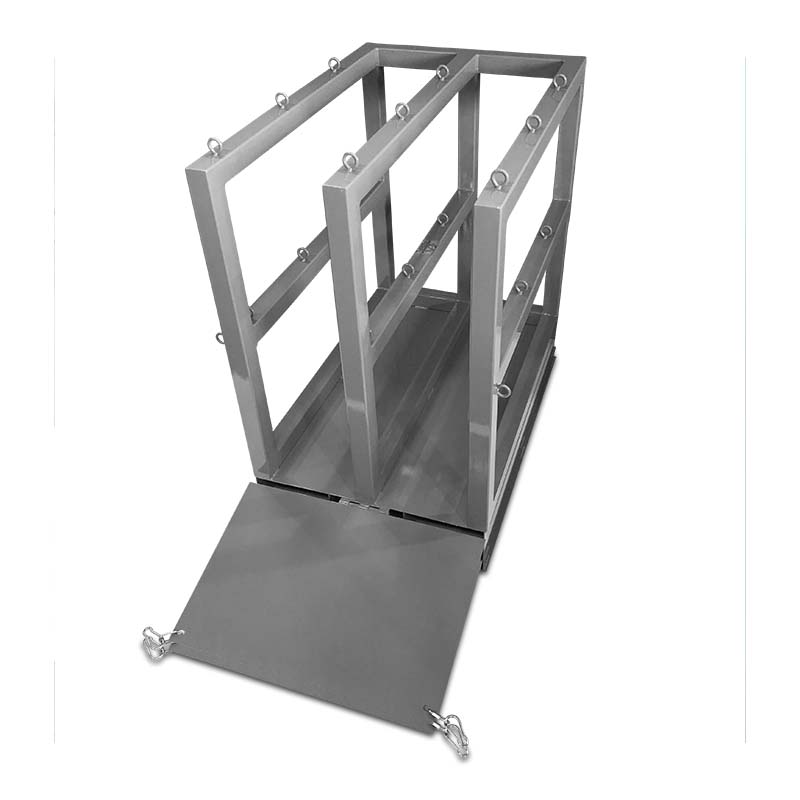

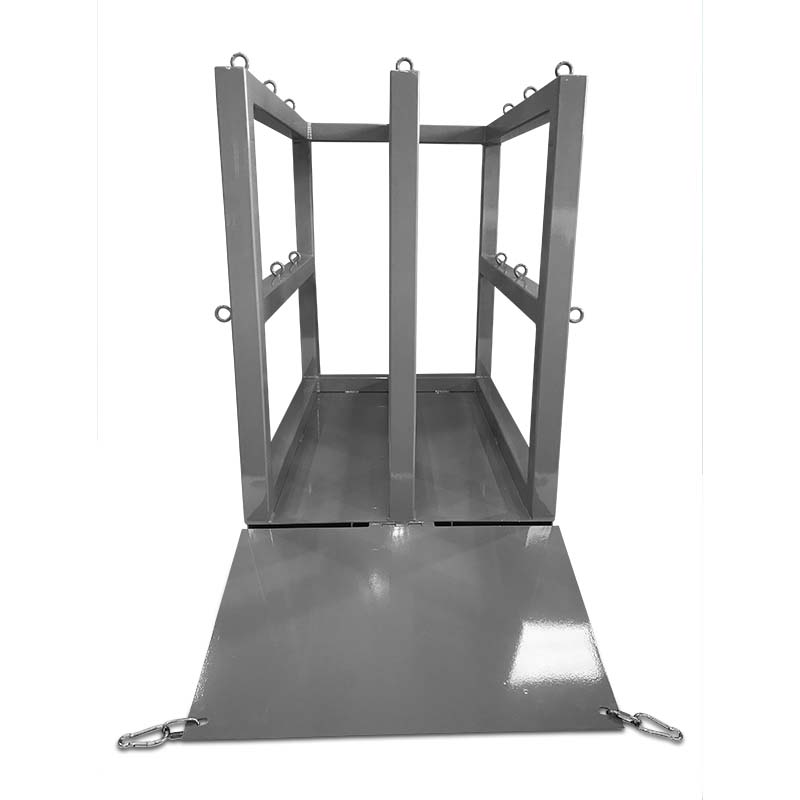

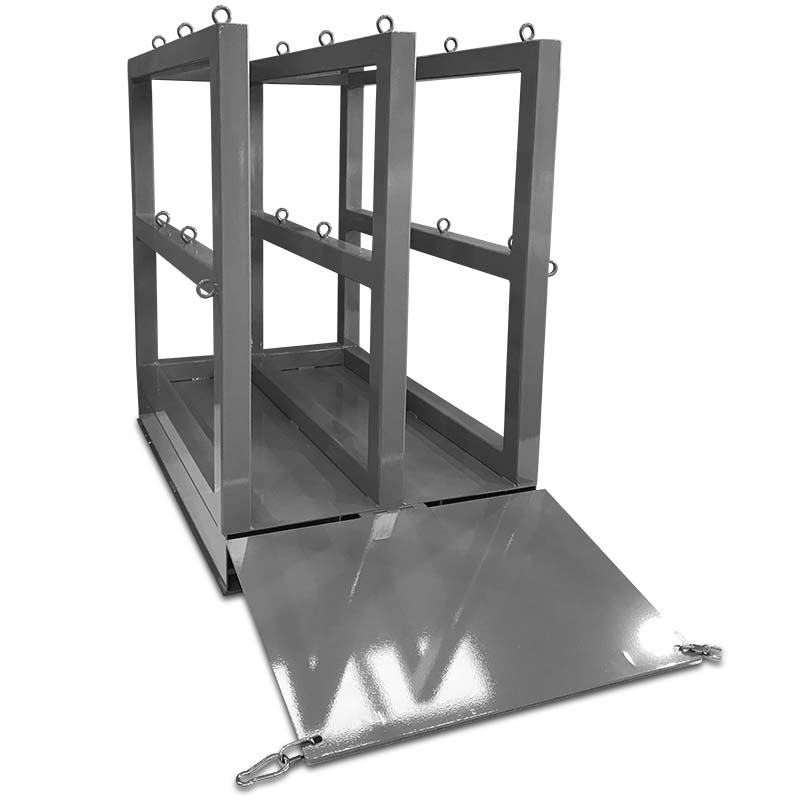

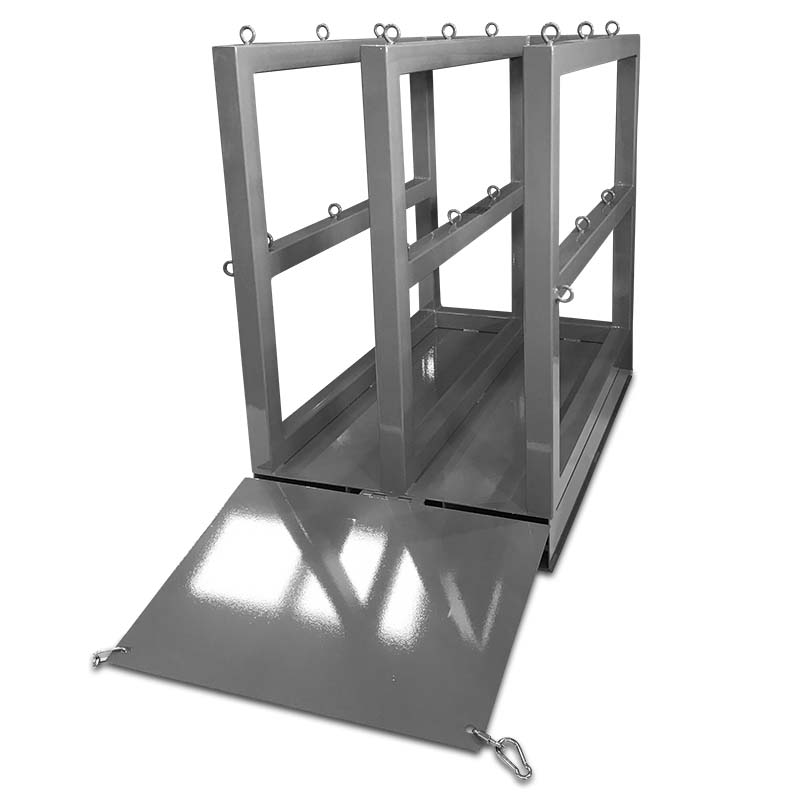

Gas cylinder pallet rack is fabricated out of tube steel 2” x 2”and 11ga thick plate. It can accommodate cylinders up to 12” dia. and can hold 6 cylinders. The cylinders are secured using polypropylene straps and additional chains can be added if required. The pallet is 4-1/4” high from the ground and has slots to accommodate standard forks (4-1/4”x 7-3/4”) from front and back. Helps comply with OSHA, NFPA 1, NFPA 55, and CGA.
Color:
Gray color readily available in stock, other custom colors offered, please call to check availability.
Lead time:
Product is made-to-order and ships 3-4 weeks from order date.
- Cylinder capacity: 6
- Cylinder diameters supported: 6” - 12"
- Steel construction
- Powder coated finish
- Polypropylene straps and cinch buckle for each cylinder included
- Platform height is 4-1/4” from ground

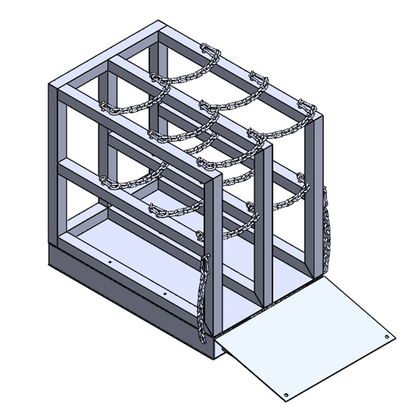

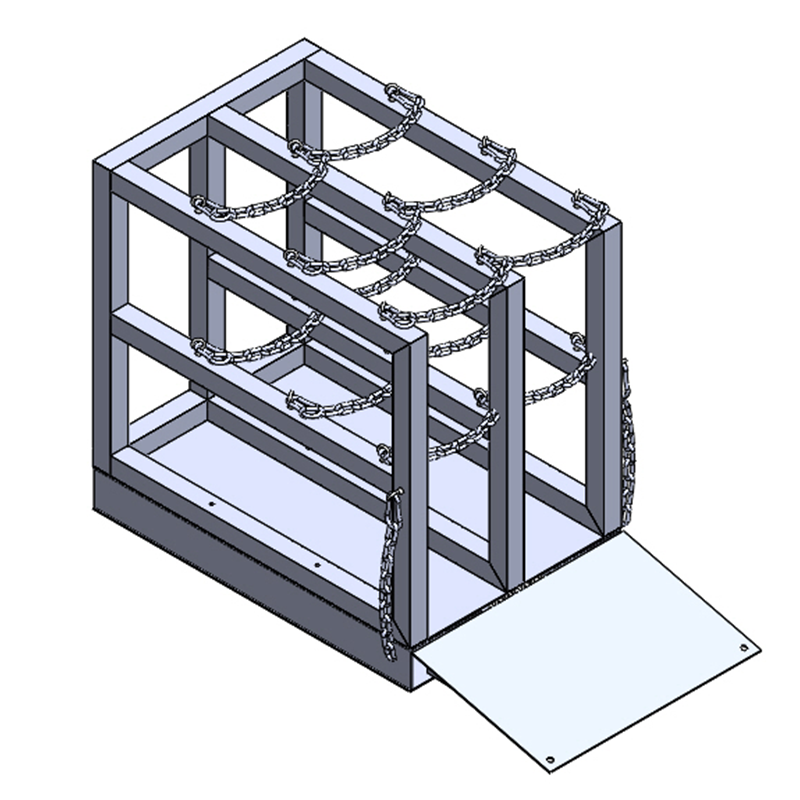

- Chain sets (optional) can be added for additional support
- Meets USGS high seismic hazard zone requirements when installed properly
- OSHA, NFPA 1, NFPA 55, and CGA compliant when used properly
- Overall dimensions: 30" wide x 42" deep x 37" high
- Product Weight: 244 lbs.
- Made in the USA
