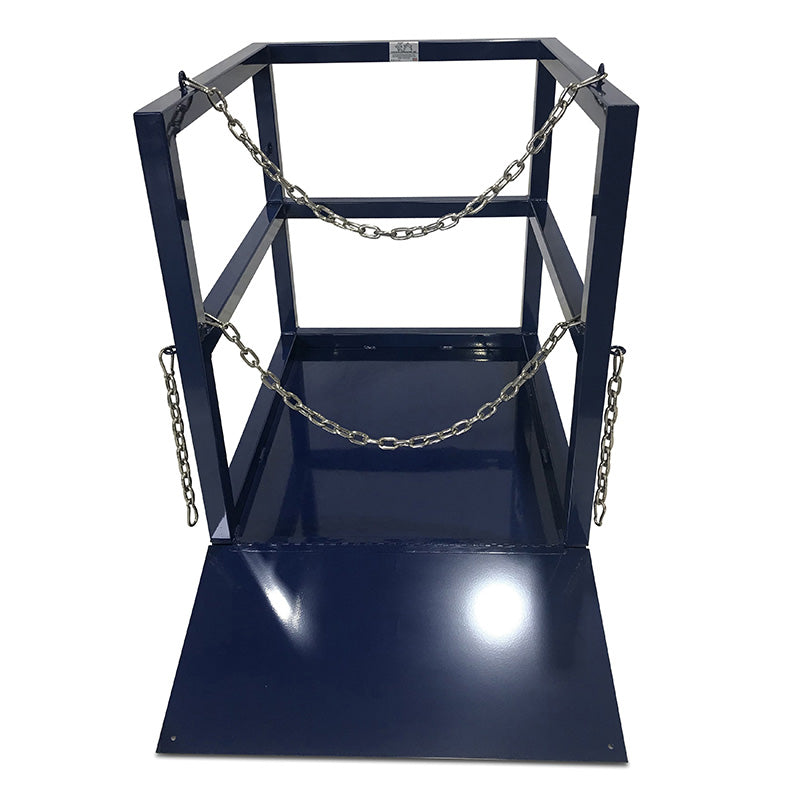

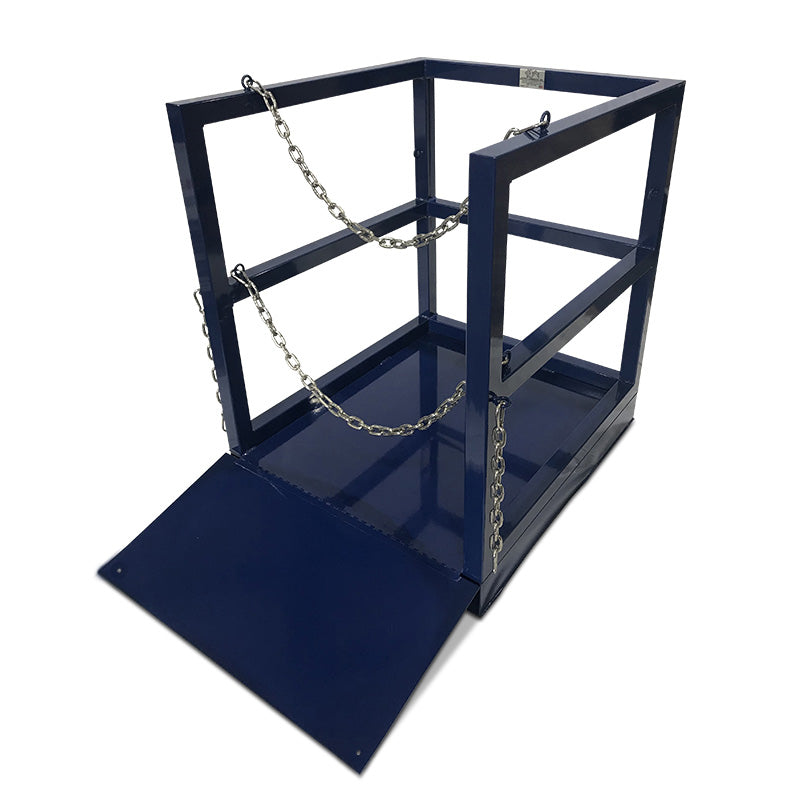

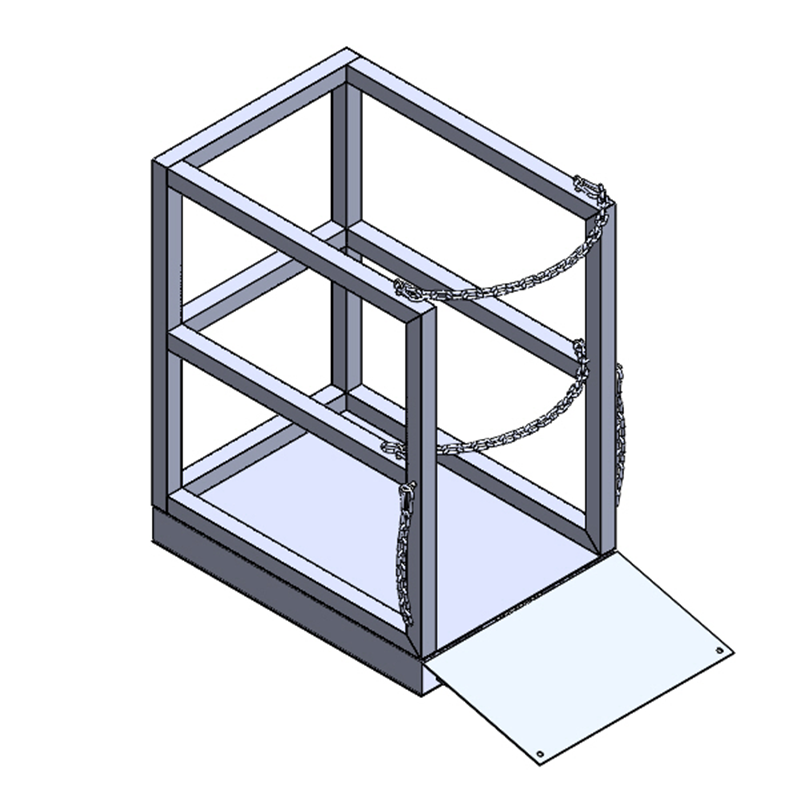

Gas Cylinder Pallet (2x2) - 24" Bulk w/ramp (16")

Gas cylinder pallet rack is fabricated out of tube steel 2” x 2”and 11ga thick plate. It can accommodate cylinders up to 22” dia. The cylinders are secured using polypropylene straps and additional chains can be added if required. The pallet is 4-1/4” high from the ground and has slots to accommodate standard forks (4-1/4” x 7-3/4”) from front and back. Helps comply with OSHA, NFPA 1, NFPA 55, and CGA.

Color:
Gray color readily available in stock, other custom colors offered, please call to check availability.

Lead time:
Product is made-to-order and ships 10 - 20 business days from order date.

• Cylinder capacity: 4 x 9" diameter or 1 x 22" diameter
• Cylinder diameters supported: 6” - 22"
• Steel construction
• Powder coated finish
• Polypropylene straps and cinch buckle for each cylinder included
• Platform height is 4-1/4” from ground
• Chain sets (optional) can be added for additional support
• Meets USGS high seismic hazard zone requirements when installed properly
• OSHA, NFPA 1, NFPA 55, and CGA compliant when used properly
• Overall dimensions: 24" wide x 36" deep x 36" high
• Product Weight: 130 lbs.
• Made in the USA
